V803 Vacuum Chuck Head, 3"

V806 Vacuum Chuck Head, 6"

V808 Vacuum Chuck Head, 8"

Spindle sizes: 1", 1.25", and 33mm

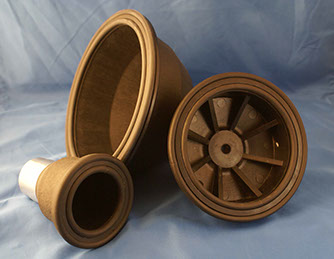

Vacuum Chuck Heads

V803, V806, and V808



Vacuum chuck heads are versatile and seal flat, concave, and convex surfaces.



Double O-ring seals provide the optimal vacuum seal.



Available in standard spindle threads 1", 1.25", and 33mm.



Tips:

• Use the largest chuck that will fit your project. The holding vacuum is proportional to the surface area of the chuck head.  A 6" chuck head has more than 3 times the holding power of a 3" chuck.
• Double O ring seals may need to be re-glued after extensive use. Use a pressure-sensitive adhesive such as Aleene's Tack-It Over & Over adhesive.



Hold Fast Vacuum Generator



The V812 Series Vacuum Generators provides an economical vacuum source for all your Hold Fast vacuum chucking systems. Only requires a basic 2CFM compressor.



• The V812 operates optimally with 80-90 PSI Air pressure.
•  Easy vacuum adjustment knob ideal for lower start up vacuum required with Stabilizing Resin chambers.
• 25+ In Hg vacuum at sea level.
• small, compact, and quiet - just the light sound of air escaping from the case.



Tip: Mount closely to the working area with double-sided tape, Velcro, or magnets to provide easy reach for control of vacuum.

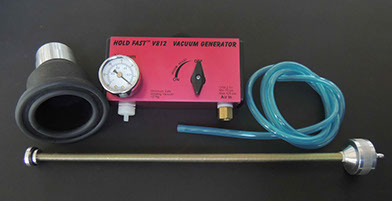

Hold Fast Vacuum Kit



Hold Fast Vacuum Kit has everything you need to start vacuum chucking.



VCS kits include:

V812 Vacuum Generator

V802 Universal Vacuum Adapter

plus a 3" or 6" Chuck Head



3", 6", and 8" chuck heads available in 1"x8, 1.25"x8, and 33mm spindle sizes

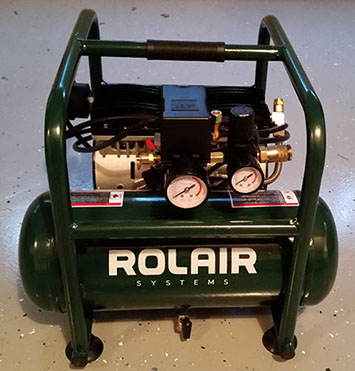

Rolair JC10 Air Compressor



Thinking about getting an air compressor?



TMI Products recommends Rolair, an excellent 2.3 CFM.



(we are not affiliated with Rolair but love their products!)



Super quiet, lightweight, and compact!
